1100W On-Board Charger | 1100W IP67 | 24V-72V Industrial OBC
1100W On-Board Charger | 1100W IP67 | 24V-72V Industrial OBC
The OneE EL-1100W is a high-efficiency, fanless on-board charger (OBC) designed for industrial applications such as electric forklifts, floor scrubbers, and heavy-duty utility vehicles. Its passive aluminum housing with IP67 waterproof and dustproof protection ensures silent, maintenance-free operation in harsh warehouse and outdoor environments. The universal AC input (90–264V, 40–70Hz) supports global deployment without modification. Output voltage is factory-configurable from 24V to 72V, compatible with both lead-acid and lithium battery systems (LiFePO4, NMC). With a high power factor (≥0.98) and efficiency (≥92%), it minimizes energy consumption and heat generation. OEM branding and custom connector configurations are available for qualified buyers.
Core Features
IP67 Waterproof & Dustproof
Fanless sealed aluminum housing — silent, zero-maintenance operation
Universal AC Input (90–264V)
Compatible with US, EU, and global power standards without modification
Adjustable Dynamic Charging Curve
Supports lead-acid, LiFePO4, and NMC battery chemistries
Wide Operating Temperature
Rated -40°C to +60°C — built for extreme cold storage and hot climates
High Efficiency ≥92%
High power factor (≥0.98) minimizes reactive power and energy costs

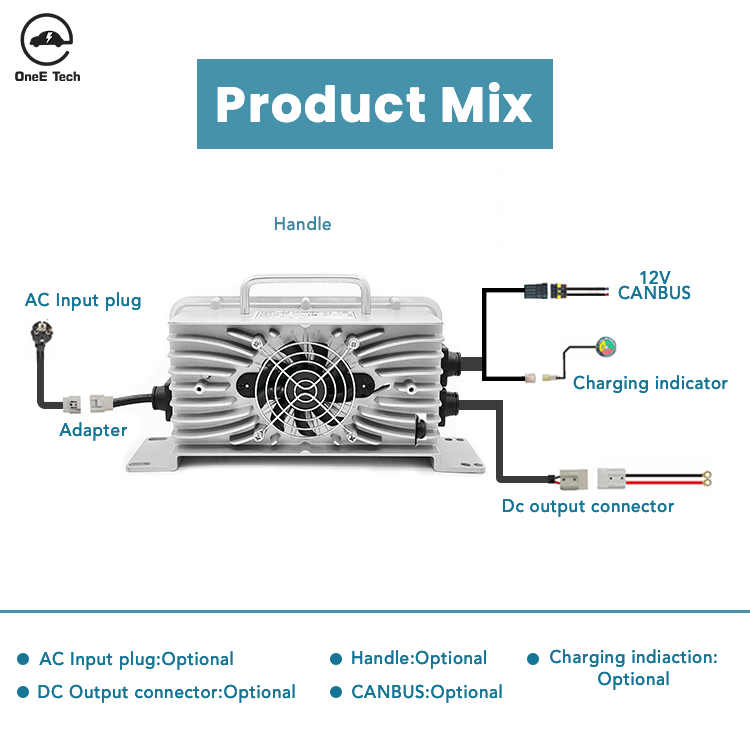

OEM / ODM Customization
Custom voltage, current, connector, and private label branding available
Basic Parameters
| Model | EL-1100W | Rated Power | 1100W |
| AC Input Voltage | AC 90–264V | AC Input Current | 9A |
| AC Input Frequency | 40–70Hz | Power Factor | ≥0.98 |
| Efficiency | ≥92% | Charging Mode | Adjustable Dynamic Charging Curve |
| Working Temperature | -40°C ~ +60°C | CAN Communication | Optional |
| LED Indicator | Standard | Protection Level | IP67 |
| Dimensions (L×W×H) | 281 × 128 × 85 mm | Net Weight | 2.2 kg |
Output Specifications
| AC Input Voltage | Rated Output Voltage | Max Output Current |
|---|---|---|
| AC 90–264V | 24V | 25A |
| AC 90–264V | 48V | 20A |
| AC 90–264V | 60V | 15A |
| AC 90–264V | 72V | 13A |
Ready to Order or Need a Custom Spec?
We supply OBC chargers to distributors, EV manufacturers, and fleet operators worldwide. Custom voltage, current, and connector configurations available. Our team typically responds within 24 hours.
